Oracle Database 23ai Free (Oracle Linux 8) by metabloc

Welcome to your Oracle Database 23ai Free deployment solution by metabloc. This stack was designed to be as streamlined as possible, with the least number of steps required to get you up and running quickly. Please follow the directions closely to ensure success. It is recommended to get the product you purchased running per this documentation first. Then you have the option to customize your solution to your requirements.

These instructions for our stack assume the following:

·         Basic understanding of the AWS console

·         Intermediate skill level and/or experience with Oracle Linux and Oracle database

·         Remote access SSH client, such as Putty, and how to create a ppk file from an AWS PEM file. These credentials will allow you to connect to your new EC2 instance in your AWS availability zone

Preinstalled Software

·         Oracle Linux 8.7

·         Oracle Database Free 23.7

·         Oracle REST Data Services 24.4

·         Oracle SQLcl 24.4.1

·         Oracle APEX 24.2

·         JDK 21.0.5

License

This software is licensed under the Oracle Free Use Terms and Conditions

Getting Started

Connect to your EC2 Instance using an SSH Client such as putty, as the ec2-user. More information about how to do this is here:

https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/connect-linux-inst-from-windows.html

Configuration Information

  Oracle Home                     : /opt/oracle/product/23ai/dbhomeFree

  ORDS/SQLDeveloper Web           : http://[EC2 Instance IP]:8080/ords/sql-developer

  APEX                            : http://[EC2 Instance IP]:8080/ords

  SQLcl                           : localhost:1521/freepdb1

Database Information

    Oracle SID         : free

    Pluggable DB       : freepdb1

Database Access

Operating System authentication with the oracle Linux user is enabled. Use this account to reset the SYS, SYSTEM, and any other database accounts.

Sample schemas have been preloaded in the freepdb1 database (HR, HRREST, CO, SH).

The precreated PDB freepdb1 database and CDB free can be accessed using the sqlcl client on the EC2 instance, the SQL Developer Web client, or using an Oracle client such as SQL Developer on your PC or another EC2 Instance. Ensure TCP Port 1521 is enabled in your AWS Security Group configuration to allow this connection.

To connect from the sqlcl client, on your SSH client, switch to the oracle user

sudo su - oracle

Use SQLcl to connect to the precreated free container database as sysdba and switch to the freepdb1 pluggable database:

sql / as sysdba

SQL> alter session set container = freepdb1;

To reset any database user passwords, use the following:

SQL> alter user [username] identified by "[newpassword]" account unlock;

SQLcl access to the precreated PDB freepdb1 from a terminal window

sql hr/[password]@localhost:1521/freepdb1

SQLcl access to the CDB free

sql system/[password]@localhost:1521/free

From a web browser:

• Launch APEX
• http://[EC2 Instance IP]:8080/ords
• Launch SQL Developer Web
• HR is the only schema enabled
• http://[EC2 Instance IP]:8080/ords/sql-developer

Ensure TCP Port 8080 is enabled in your AWS Security Group configuration to allow connection from your web browser’s IP address.

APEX Application Information

To develop an APEX app against the HR schema, visit http://[EC2 Instance IP]:8080/ords/apex and use the APEX Builder login page for the HR_DEV workspace with credentials: HR_ADMIN / oracle

To manage the APEX instance, visit http://[EC2 Instance IP]:8080/ords/apex, scroll to the bottom of the APEX Builder login page and click the Administration link to sign in to Administration Services with the ADMIN user.

Connect to the freepdb1 pluggable database to reset the ADMIN Apex user password with the apxchange.sql script.

From your SSH client, switch to the oracle user

sudo su - oracle

Connect to the free container database and switch to the freepdb1 pluggable database, and run the APEX password change script apxchpwd.sql:

sql / as sysdba

SQL> alter session set container = freepdb1;

SQL> @/home/oracle/apex/apxchpwd.sql

The APEX directory is /home/oracle/apex and APEX Images directory /home/oracle/apex_images.

The ORDS  directory is /home/oracle/ords and ORDS config directory /home/oracle/ords_config

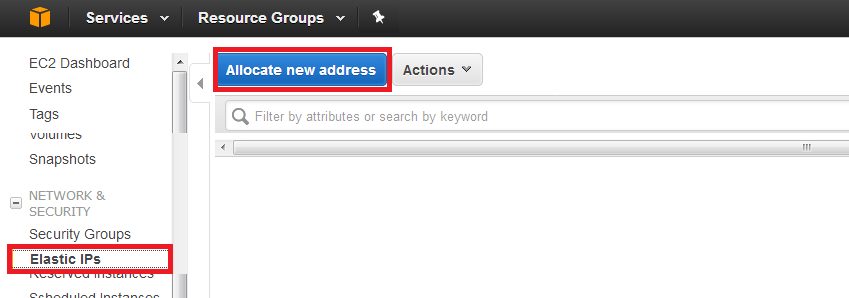

AWS Elastic IP Address Allocation

It is strongly recommended that you create an AWS elastic IP address associated to this new EC2 build instance. This will allow you to start and stop without having to update public IP address connection information.

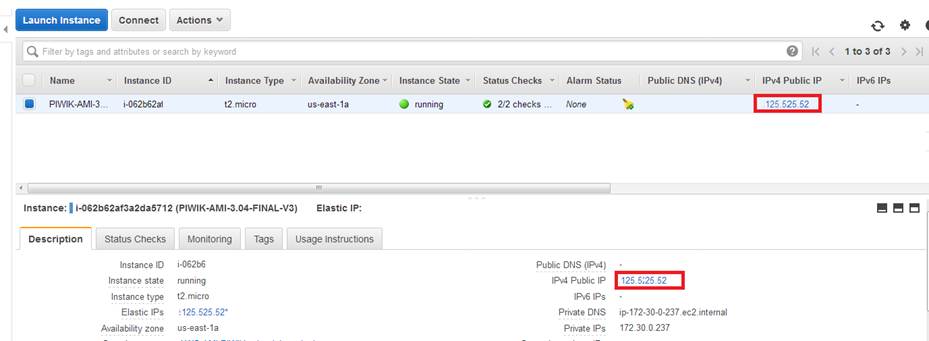

AWS Public IP Address Setting

AWS Security Group Configuration

Enable SSH, HTTP, HTTPS and SQL*Net from your client IP to the EC2 Instance IP

  SSH          : 22:22

  HTTPS        : 443:443

  HTTP         : 80:80

  HTTP         : 8080:8080

  SQL*Net      : 1521:1521
